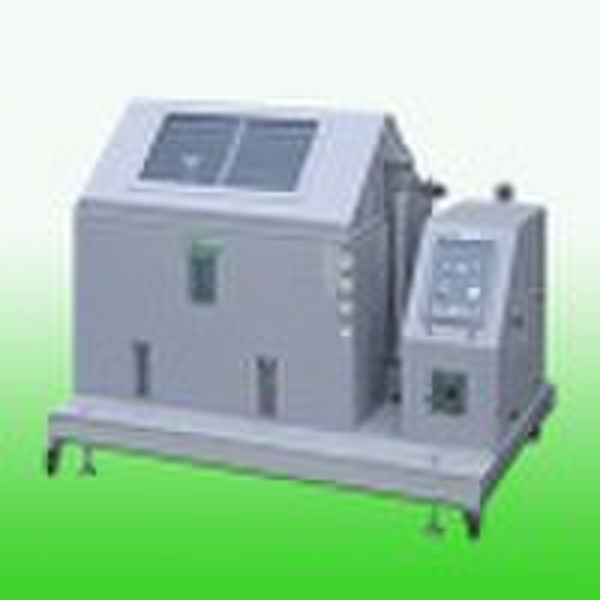

HZ-2001B Salt spray tester

Equipment summary: Salt spraytester used to test the corrosive resistance of products whose the surface was treated with paint, lectroplating,inorganic and organic film, anode handling, anti-rust oil, etc.Corresponding standard: 1.GB/T 2423.17-1993 salt spray test 2.GB/T 2423.18-2000 salt spray test 3.GB/T 10125-1997 salt spray test 4.ASTM.B117-97 salt spray test 5.JIS H8502 salt spray test 6.IEC68-2-11 salt spray test 7.IEC68-2-52 1996 salt spray test 8.GB.10587-89 salt spray test 9.CNS.4158 salt spray test 10.CNS.4159 CASS Accelerated acetic acid copper salt spray test11..GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray testTechnical parameters:ModelHZ-2001CHZ-2001BHZ-2001AInternal dimension (cm)60*45*4090*60*50120*80*50Outside box size (cm)107*60*118141*88*128190*110*140Testing room temperatureSalt test (NSS ACSS) 35±1 degree / Corrosion Test (CASS)50±1 degreePressure barrel temperatureSalt test (NSS ACSS) 47±1 degree / Corrosion Test (CASS)63±1degreeBrine temperature35±1 50±1Testing room Capacity108 L270 L480 LBrine tank capacity15 L25 L40 LSalt concentrationThe /of copper chloride (CuCl2 2H2O)Air pressure1.00 ± 0.01kgf/cm2Spray volume1.0 2.0ml /80cm2 /h(working at least 16 hours, and then take the average)Testing room relative humidity85%or above PH 6.5 7.2 3.0 3.2Spray formProgrammable spray (Including continuous and intermittent spray)PowerAC220V1 Φ10AAC220V1 Φ15AAC220V1Φ20A
